Sale!

DAB ESYBOX 1.1kW VSD Booster Pump 220V – Constant Pressure System - Image 3

DAB ESYBOX 1.1kW VSD Booster Pump 220V – Constant Pressure System

Original price was: R22 150,00.Current price is: R19 999,00. Incl. VAT

⚠️ Limited Stock – Order Now
🚚 Ships in 1–2 days
📦 Free shipping on orders over R2000
📞 Call us for advice – 078 994 2369
✅ Genuine DAB Italy Product
✅ Includes Manufacturer Warranty
✅ VSD Booster Pump
✅ Expert Sizing Support Available
✅ Fast Nationwide Delivery

The DAB Esybox 1.1kW VSD Booster Pump is an all-in-one 220V VSD constant pressure system designed for reliable domestic water supply. With an integrated variable speed drive, it automatically adjusts performance to maintain steady pressure while reducing energy consumption. Quiet, compact, and easy to install, it’s ideal for homes, irrigation, and rainwater systems.

Need help choosing a product? Contact us with your requirements and our pro's will help you spec the correct product for your application.

DAB ESYBOX 1.1kW VSD Booster Pump 220V – Constant Pressure | Premium Residential Booster Pump

The DAB ESYBOX 1.1kW VSD booster pump is a premium, fully integrated water pressure boosting system designed to deliver consistent, reliable pressure for residential and light commercial applications. Engineered in Italy with cutting-edge technology, the ESYBOX combines performance, efficiency, and ease of use in a compact, modern unit that sets a new standard for water pressure management.

Preferred by plumbers and installers for its predictable 6 bar pressure control and quiet operation.

Using advanced variable speed inverter technology, the DAB ESYBOX automatically adjusts pump performance based on real-time water demand. This ensures constant pressure at every outlet, even when multiple taps, showers, or appliances are operating simultaneously. Unlike traditional booster pumps that switch on and off abruptly, the ESYBOX runs smoothly and efficiently, reducing energy consumption and wear on components.

One of the standout features of the DAB ESYBOX water pressure booster pump is its ultra-quiet operation. The soundproof ABS casing and vibration-absorbing base allow for indoor installation without disturbing household activities. This makes it ideal for apartments, homes, and buildings where noise control is essential.

The all-in-one design integrates the pump, motor, electronic control, pressure sensors, and expansion tank into a single compact unit. Installation is quick and straightforward, requiring minimal space and no additional external control devices. A high-resolution LCD display provides intuitive setup, real-time system monitoring, fault alerts, and performance data, making operation simple even for non-technical users.

Built for long-term reliability, the DAB ESYBOX includes comprehensive protection features such as dry-run protection, anti-cycling control, over-temperature protection, and automatic reset functions. These safeguards help extend pump life and ensure dependable operation under varying water supply conditions.

Ideal applications include domestic water pressure boosting, rainwater harvesting systems, irrigation, apartments and light commercial buildings.

Key Features & Benefits

The DAB ESYBOX is designed to deliver up to 6 bar of controlled, constant pressure, which is the maximum pressure the inverter can actively regulate. While the unit is structurally rated for higher system pressures, 6 bar represents the true, usable pressure for domestic and light commercial applications.

Constant Water Pressure

The DAB ESYBOX automatically adjusts pump speed using advanced inverter technology to maintain steady water pressure, even when multiple taps or appliances are running at the same time.

Ultra-Quiet Operation

With a soundproof ABS housing and vibration-dampening design, the ESYBOX is one of the quietest water booster pumps in its class—ideal for indoor installation.

Energy Efficient & Smart

The variable speed motor reduces energy consumption by running only as fast as needed, helping lower electricity costs while extending pump lifespan.

Compact All-in-One Design

The ESYBOX integrates pump, motor, pressure sensor, expansion tank, and electronic control into a single compact unit, saving space and simplifying installation.

Easy Installation & User-Friendly Control

A high-resolution LCD display allows quick setup, real-time monitoring, and simple adjustments. No external control panel required.

Reliable Protection Systems

Built-in dry-run protection, anti-cycling technology, and automatic reset functions help protect the pump and ensure long-term dependable operation.

Ideal Applications

Residential homes and apartments
Water pressure boosting from tanks or mains supply
Irrigation systems
Light commercial buildings

Why Choose the DAB ESYBOX?

The DAB ESYBOX booster pump combines smart technology, quiet performance, and premium build quality into a single solution. If you’re looking for a reliable water pressure booster, energy-efficient pump, or silent home water pump, the ESYBOX sets the benchmark for comfort and performance.

Experience consistent water pressure—effortlessly—with the DAB ESYBOX.

Weight	27 kg
Dimensions	68 × 36 × 49 cm

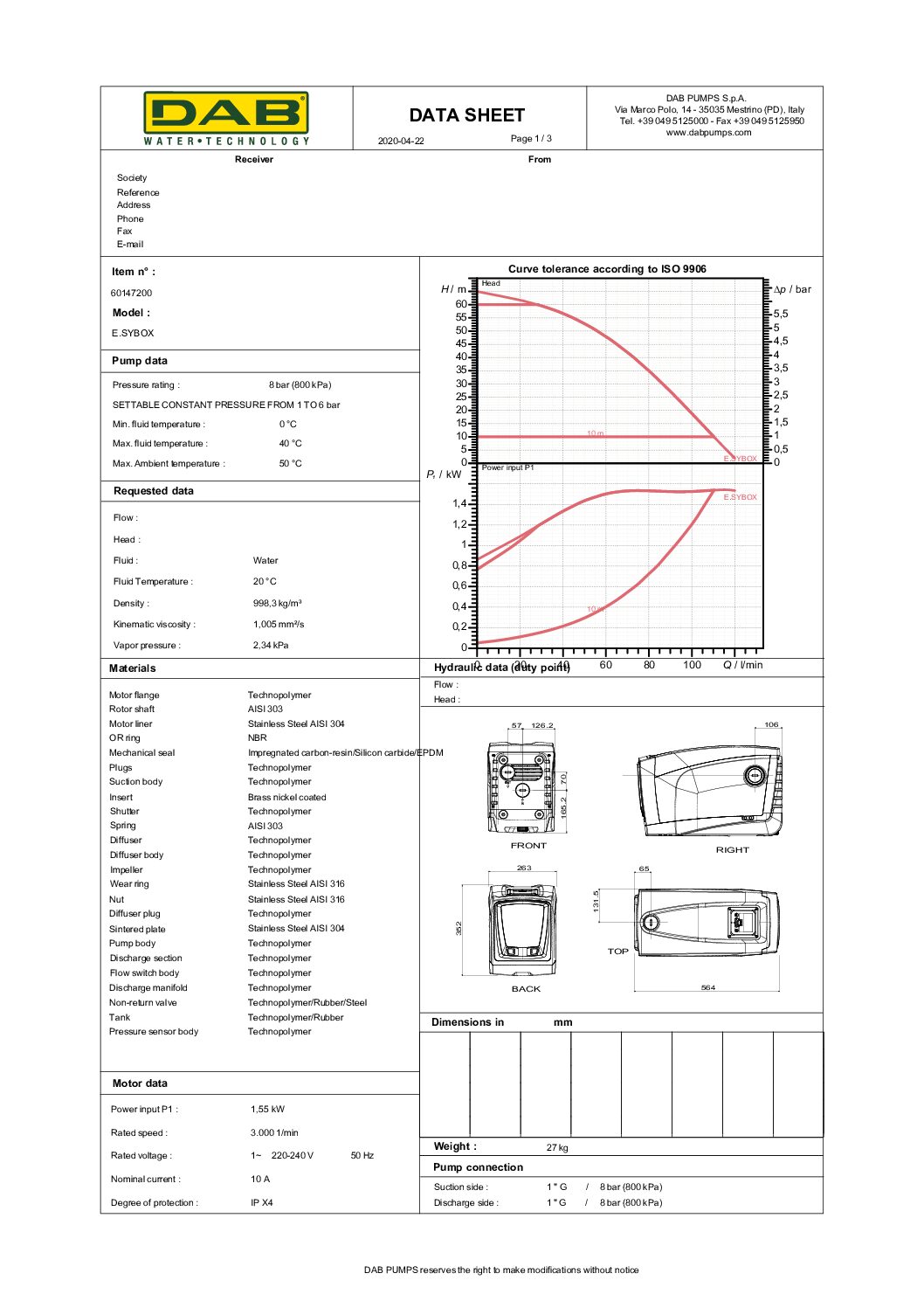

Specifications

Specification	Details
Model	DAB E.SYBOX 1.1 kW VSD Booster Pump
Motor Power	1.1 kW (rated motor power – P2)
Voltage / Frequency	220–240 V / 50–60 Hz
Maximum Current	Up to 10 A
Maximum Power Consumption	Up to 1550 W
Maximum Flow Rate	Up to 120 L/min (≈ 7.2 m³/h)
Maximum Head	Up to 65 m
Maximum Adjustable Operating Pressure	6 bar (600 kPa)
Maximum System Pressure	8 bar (design / structural limit)
Priming Depth	Self-priming up to 8 m
Liquid Temperature	Maximum +40 °C
Ambient Temperature	Maximum +50 °C
Protection Class	IPX4
Motor Insulation Class	Class F
Noise Level	Approximately 43–45 dB(A)
Installation	Horizontal, vertical, or wall-mounted (accessories sold separately)
Features	Constant pressure via VSD, dry-run protection, anti-cycling, anti-freeze protection, optional wireless connectivity
Weight (Approx.)	27 kg
Dimensions (mm)	Approx. 685 × 360 × 490 mm
Typical Uses	Domestic pressurisation, irrigation, rainwater reuse, borehole & clean water boosting

Pros & Cons

✅ Pros – DAB ESYBOX 1.1 kW VSD Booster Pump

Constant water pressure at all outlets
Integrated Variable Speed Drive (VSD) automatically adjusts pump speed to demand, ensuring stable pressure even when multiple taps are used simultaneously.
Energy-efficient operation
The inverter-driven motor reduces power consumption compared to traditional on/off booster pumps, helping to lower electricity costs over time.
Ultra-quiet performance
With a noise level of around 43–45 dB, the ESYBOX is one of the quietest domestic booster pumps available, ideal for indoor or residential installations.
All-in-one compact design
Built-in pressure sensor, expansion vessel, non-return valve, and electronic controller eliminate the need for additional components and simplify installation.
Advanced pump protection
Features include dry-run protection, anti-cycling, anti-freeze protection, and overload protection, increasing reliability and extending pump lifespan.
Flexible installation options
Can be installed horizontally, vertically, or wall-mounted, making it suitable for homes, apartments, and plant rooms with limited space.
High build quality from DAB
Manufactured by DAB Pumps (Italy), known for premium engineering, durability, and long-term performance.
Accurate pressure specification – Unlike generic booster pumps that quote maximum system pressure, the DAB ESYBOX’s performance is defined by the actual controllable pressure delivered to your home, ensuring predictable and safe operation.

⚠️ Cons – Things to Consider

Higher upfront cost
The ESYBOX is more expensive than conventional pressure booster pumps, although this is often offset by energy savings and reduced maintenance.
Not designed for dirty or abrasive water
Suitable for clean water only; pre-filtration is required if used with rainwater or borehole systems containing sand or debris.
Limited suction depth
Self-priming up to approximately 8 m, so it is not suitable for deep suction applications without proper system design.
Electronic components require stable power
As a VSD pump, it performs best with stable electrical supply; surge protection is recommended in areas with voltage fluctuations.

FAQ's

DAB ESYBOX 1.1kw Booster Pump FAQ.

1.What is the maximum operating pressure of the DAB ESYBOX 1.1 kW?

The DAB ESYBOX 1.1 kW can be set to maintain a maximum operating pressure of 6 bar. This is the highest pressure that the integrated variable speed drive (VSD) can actively control and regulate during normal operation.

2.Why do some sources list the DAB ESYBOX as an 8 bar pump?

Some specifications refer to the maximum allowable system pressure of 8 bar, which is a structural safety rating. This figure does not represent the pump’s controllable operating pressure. For real-world use, the ESYBOX is designed to deliver and regulate pressure up to 6 bar.

3.Is 6 bar pressure sufficient for domestic water supply?

Yes. A regulated pressure of up to 6 bar is more than sufficient for domestic water supply, multi-outlet households, irrigation systems, and pressure boosting applications. Operating within this range ensures stable pressure, energy efficiency, and long-term reliability.

4.Can the DAB ESYBOX be used with borehole or rainwater systems?

Yes, the DAB ESYBOX can be used with borehole or rainwater harvesting systems, provided the water is clean and properly filtered. Pre-filtration is recommended to prevent sand or debris from entering the pump.

5.Does the DAB ESYBOX require surge protection?

Because the ESYBOX uses electronic variable speed control, surge protection is recommended, especially in areas with unstable or fluctuating power supply, to protect the inverter and electronic components.

6. What is the DAB ESYBOX pump?

The DAB ESYBOX is a compact, energy-efficient pump designed to boost water pressure for homes and small commercial systems. It delivers reliable water flow for taps, showers, irrigation, and appliances.

7. What are the main features of the ESYBOX pump?

High-efficiency, energy-saving motor
Built-in pressure tank for smooth water supply
Compact, space-saving design
Quiet operation ideal for residential use
Easy installation and low maintenance

8. What is the ESYBOX pump used for?

It is ideal for:

Domestic water supply from tanks or mains
Garden irrigation systems
Shower and tap pressure boosting
Small commercial water systems

9. How do I install a DAB ESYBOX pump?

Install near the water source, connect inlet and outlet pipes securely, and plug in the pump. Always follow the manufacturer’s installation guide and local plumbing regulations.
