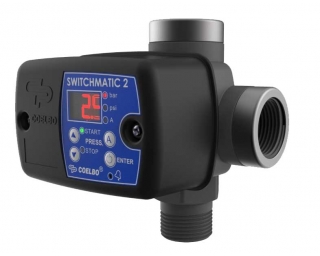

Coelbo T-Kit Switchmatic 2 Electronic Pressure Controller Kit 220V

R2 850,00 Incl. VAT

✅ Available 2-3 Working Day Dispatch (From SA Supplier)
✅ Genuine Coelbo Product
✅ Includes Manufacturer Warranty
✅ Pressure Switch Only
✅ Expert Sizing Support Available
✅ Fast Nationwide Delivery

The Coelbo T-Kit Switchmatic 2 is a compact electronic pressure controller kit designed for automatic pump control in domestic and light commercial water systems. It combines digital pressure management, dry-run protection, and integrated components for reliable and easy booster pump installation.

Need help choosing a product? Contact us with your requirements and our pro's will help you spec the correct product for your application.

Coelbo T-Kit Switchmatic 2 Pressure Controller Kit

The Coelbo T-Kit Switchmatic 2 is an advanced electronic pressure control solution designed to automate and protect single-phase water pump systems. Built around Coelbo’s Switchmatic 2 intelligent pressure controller, this kit simplifies installation while improving system reliability and performance.

Intelligent Digital Pressure Control

The Switchmatic 2 allows precise adjustment of:

Start pressure
Stop pressure

This enables accurate system tuning for booster pumps, pressure pump systems, and JoJo tank installations.

Integrated Protection Features

The unit includes built-in safety protections such as:

Dry-run protection
Over-pressure protection
Rapid cycling prevention
Alarm indication

These features help extend pump lifespan and reduce unnecessary wear.

The T-Kit configuration integrates key hydraulic components into a compact assembly, reducing installation time and ensuring correct pressure sensing within the system.

Ideal Applications

Domestic booster pump systems
Pressure pump installations for homes
JoJo tank pressure systems
Light commercial water supply systems

The Coelbo T-Kit Switchmatic 2 is ideal for installers and plumbers looking for a professional, reliable, and easy-to-configure pump control solution.

Weight	1 kg
Dimensions	15 × 15 × 15 cm

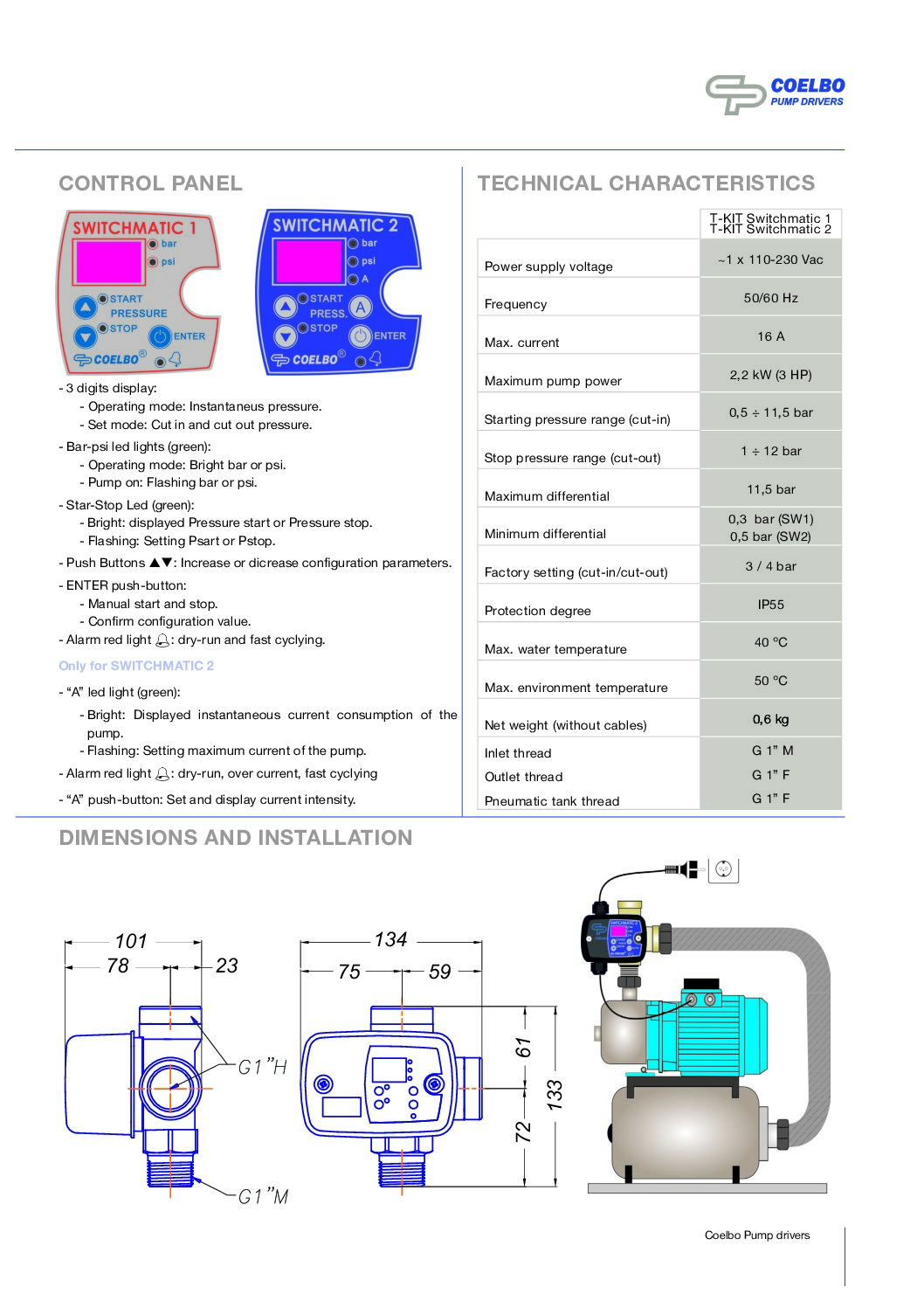

Specifications

Feature	Specification
Product Name	Coelbo T-Kit Switchmatic 2
Controller Type	Electronic digital pressure controller
Phase	Single-phase
Supply Voltage	230V AC
Frequency	50/60 Hz
Maximum Current	16A
Maximum Pump Power	Dependent on amperage rating
Adjustable Start Pressure	Yes (digital adjustment)
Adjustable Stop Pressure	Yes (digital adjustment)
Dry-Run Protection	Integrated electronic protection
Over-Pressure Protection	Yes
Rapid Cycling Protection	Yes
Display	Digital LED display
Protection Rating	IP65
Hydraulic Connection Size	1” BSP male
Installation Position	In-line, horizontal mounting recommended
Application	Booster pumps, pressure systems, JoJo tank systems

Pros & Cons

✅ Pros

✔ Digital pressure adjustment (more accurate than mechanical switches)
✔ Built-in dry-run protection protects pump from damage
✔ Reduces rapid cycling and pump wear
✔ Compact, integrated installation kit
✔ Clear digital display for easy setup
✔ Suitable for domestic and light commercial booster systems

❌ Cons

✖ Single-phase only
✖ Requires correct pressure setup during installation
✖ Higher cost than basic mechanical pressure switches
✖ Must be installed according to manufacturer guidelines

FAQ's

1. What does the Coelbo T-Kit Switchmatic 2 do?

It automatically starts and stops your pump based on system pressure while protecting it against dry running and pressure faults.

2. Can I adjust the start and stop pressure?

Yes. The Switchmatic 2 allows digital adjustment of both cut-in (start) and cut-out (stop) pressure settings.

3. Does it protect against dry running?

Yes. It includes integrated dry-run protection that stops the pump if water supply is lost.

4. Is this suitable for JoJo tank systems?

Yes. It is commonly used in booster pump systems connected to water storage tanks.

5. Is it better than a mechanical pressure switch?

Yes. It provides more accurate control, built-in protection features, and reduces pump cycling compared to traditional pressure switches.

6. Can it be used on any pump?

It is suitable for compatible single-phase pumps within the controller’s rated amperage and pressure limits. Always verify pump specifications before installation.
